3M Lined Spray Cup Systems

Become more productive with our 3M™ PPS™ Series 2.0 Spray Cup System | Linered and Vented options

3M™ PPS™ reduces cleaning solvent consumption by up to 70% and reduces prep and clean-up time by up to 50%; compared to conventional paint cup systems. Available in a range of sizes from 3 ounces to 32 ounces and in either linered or vented style.

Reinvented from connection to cup
- Nearly 20 years ago, 3M invented the 3M™ PPS™ paint preparation system - now after thousands of hours watching and working with hundreds of painters we've redesigned the spray cup six ways to make painting easier.
- 1. Wide Spout Adapter with Four-Point Connection. Maximises stability while spraying. Makes cleaning easier.
- 2. Quarter-Turn Lid Locking System. Comes with every lid. Stays cleaner. Locks faster. Fewer parts to keep track of.
- 3. Domed Lid with Full-Diameter Filter. More paint below the filter delay spitting at the end of the job.
- 4. New Cup in Every Lid & Liner Kit. Start with a clean cup more often, reducing paint build-up. On-cup ratios and fill markings eliminate traditional mixing cups.
- 5. Access Window. Allows you to hold the liner for cleaner, easier lid removal when refilling. Also easier to check paint levels.
- 6. Larger Cup Sealing Plug. Allows you to keep paint for a short time in the cup standing on the sealing plug, providing protection and greater stability. Use fewer lids by keeping filter wet.

Experience the joy of cleaner, easier, faster painting with the 3M™ PPS™ Series 2.0 Spray Cup System

20 years since its introduction, 3M's Paint Preparation System, 3M™ PPS™, has been recognised as one of the outstanding new products of its time, offering a variety of new benefits for businesses. 3M developed the idea of a disposable paint mixing system to replace traditional spray gun mixing pots and paper filters.

The evolution of a revolution continues with the introduction of the next generation 3M™ PPS™ Series 2.0 Spray Cup System and the 3M™ Performance Spray Gun, which combine to offer increased cycle-time in the booth and reduce non-value add work time!

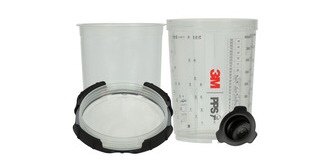

3M™ PPS™ Series 2.0 Spray Cup System Kits

Every lid comes equipped with a quarter-turn lid locking system ensuring a quick, clean seal with the cup in every application. Full diameter filters improve flow, ensure quality, and reduce spitting.

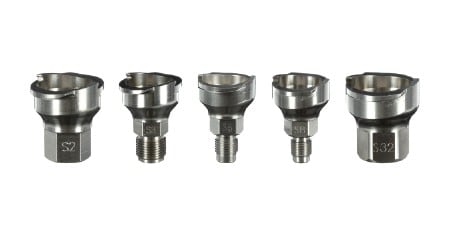

3M™ PPS™ Series 2.0 Adapters

A wide range of adapters are available for virtually every spray gun to be used with the 3M™ PPS™ Series 2.0 spray cup system.

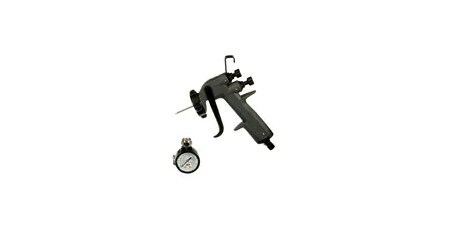

3M™ Performance Spray Gun

The spray gun that can meet any painting need: primer, sealer, industrial, marine, wood and a variety of other coatings used for collision repair. 3M scientists simplify painting again.

image of linered spray cup spraying to the left

Need help? Ask a 3M expert.

Frequently Asked Questions About 3M Linered Spray Cup Systems

Can I still mix paints using my traditional mixing cups and filters?
You can eliminate traditional mixing cups and filters by mixing materials right inside your 3M™ PPS™ Series 2.0 Cups. Each cup has built-in mixing ratio and fill markings. Each lid contains a fresh, welded-in filter.
What 3M™ PPS™ 2.0 cup size should I choose for my bodyshop?
Best stock all kit sizes to always have the right size cup for the job, reducing your cost per use:
- mini cups – for spot or 1-panel repairs and areas requiring up to 200 ml of material
- midi cups – for 2-panel repairs or areas requiring up to 400 ml of material
- standard cups – for 3-panel repairs or areas requiring up to 650 ml of material
- large cups – for 4-panel repairs or areas requiring up to 850 ml of material, including i.e. large clear coat batches
Do I need special dispensers to store 3M™ PPS™ 2.0 lids and liners?
Use red 3M™ PPS™ Dispensers. They still work with all 3M™ PPS™ Series 2.0 Lids and Liners.
Can I store paint and coatings in 3M™ PPS™ Series 2.0 Cups?
If you need to store paint and coatings in 3M™ PPS™ Series 2.0 Cup for a short time - use the wide base on your 3M™ PPS™ Series 2.0 Cup Sealing Plugs to stand your cups upside down when not in use. It helps to keep the filter mesh wet.
How do I know what adapter to use?
Specifically designed adapters facilitates the use of the 3M™ PPS™ Series 2.0 with virtually any spray gun model. Find the adapter that fits your gun(s) here (PDF, 1.53 MB).
