3M™ Glass Cloth Tape 398FRP
- | Select product options for IDs.
Details
Highlights
- Durable backing provides abrasion and puncture resistance for long-term performance in aerospace applications
- Acrylic adhesive provides excellent long-aging properties ideal for many permanent applications
- Mounted on a printed skip slit liner for ease of application
- Meets flame retardant specifications of F.A.R. 25.853(a) and F.A.R. 25.855(d) and is EU Compliant
- High conformability to bond over a variety of difficult textures and uneven or curved surfaces
- Formulation does not contain antimony
- Formulation does not contain antimony
- Offers good temperature resistance of -20ºF/-29ºC to 250ºF/121ºC
- Meets requirements of, and can be qualified, to Boeing material specifications BMS 5-146 Type I, Class I, Grade A

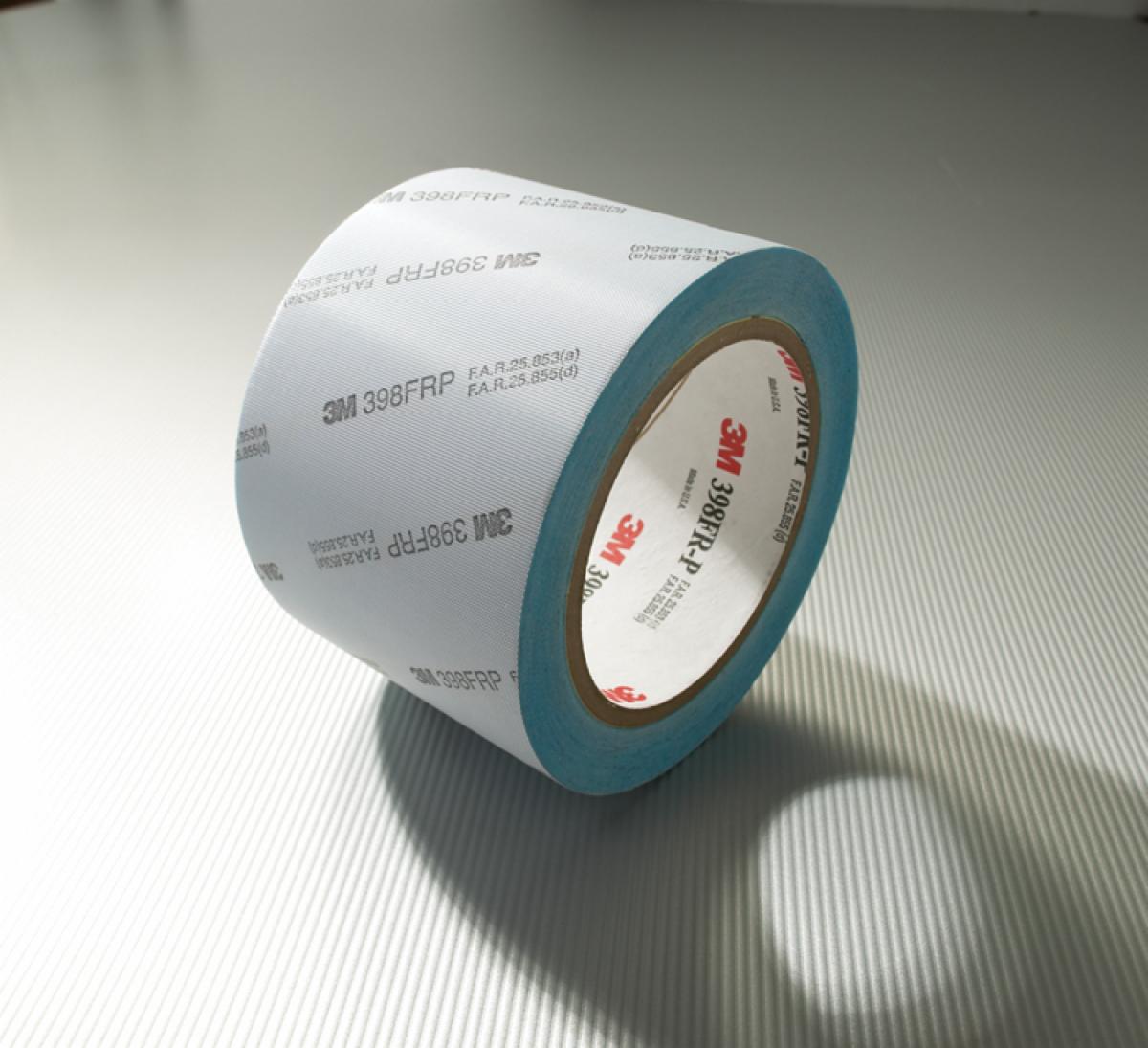

Designed primarily for sealing aircraft cargo bay panels, 3M™ Glass Cloth Tape 398FRP is an ideal choice for applications requiring high adhesion, an abrasion resistant backing and flame retardant properties. This tape offers a durable abrasion and puncture resistant glass cloth backing that is conformable for ease of installation.
Permanently Seal and Protect
Our 3M™ Glass Cloth Tape 398FRP has a printed liner which shows it meets industry FAR specifications. This tape features pressure sensitive acrylic adhesive that adheres to a variety of substrates. It is mounted on a blue, polyethylene, skip slit liner for ease of application. Once bonded, this adhesive provides high, secure adhesion for extended periods in a wide range of climate and temperature conditions, including temperatures as high as 250ºF/121ºC. This tape features good puncture resistance, high tensile strength and superior abrasion resistance.
3M™ Glass Cloth Tape 398FRP meets the flame retardant specifications of F.A.R. Part 25.853(a), F.A.R. Part 25.855(d) and MIL A 3316C 3 13.1 and 3 13.2. It is EU compliant per directive 2003/11/EC of the European Parliament and the Council of February 6, 2003 amending Council Directive 76/769/EEC which restricts the use of penta BDE and octa BDE flame retardants. This tape meets requirements of, and can be qualified, to Boeing material specifications BMS 5 146 Type I, Class I, Grade A.
Recommended Applications
- Sealing thermal and acoustic insulation panels where high adhesion and flame retardancy are needed
- Aircraft window sealing, duct sealing and seat repair
- Protection of wire harnesses, electrical cables or hoses from temperature extremes and abrasion
Typical Properties
| Adhesive Type | Acrylic |
| Back-Side Adhesive Thickness (metric) | 0.05 mm, 0.13 mm |
| Backing (Carrier) Material | Glass cloth |
| Backing (Carrier) Thickness (Metric) | 0.13 mm |
| Brands | 3M™ |
| Case Quantity | 12/case, 24/case |
| Core Size (metric) | 7.62 cm |
| Elongation at Break | 7.0 % |
| Indoor/Outdoor | Indoor/Outdoor |
| Industries | Construction, Automotive, General Industrial, Specialty Vehicle, Military and Government, Transportation, Aerospace |
| Maximum Operating Temperature (Celsius) | 121 ℃ |
| Minimum Operating Temperature (Celsius) | -29 ℃ |
| Product Colour | White |
| Shelf Life | 24 Month |
| Specifications Met | ASTM D3330, D3652, ASTM D3758, F.A.R. 25.853(a) |
| Tensile Strength (metric) | 227.7 N/100mm |
| Total Tape Thickness without Liner (metric) | 0.18 mm |
| Units per Case | 8.0, 12.0, 24.0 |
| Overall Length (Metric) | 32.9 Metre, 32.91 Metre |
| Overall Width (Metric) | 5.1 cm, 7.6 mm, 76.2 cm, 101.6 mm |
Resources
Glass Cloth Tape 398FR and 398FRP Printed VersionData Sheets
(PDF, 10KB)
