3M™ Dyanatel™ Pipe/Cable Locator 2220M-U-PL
- 3M ID 80611339351
Details
Highlights
- Two user selected active frequency for optimized unit performance in varying conditions
- Graphic display to distinguish between targeted cable and other cables in congested area
- Single peak high sensitivity mode for deep depths and long distances
- Directional mode utilizes all-peak antenna design for improved left/right guidance and accurate locates in challenging conditions

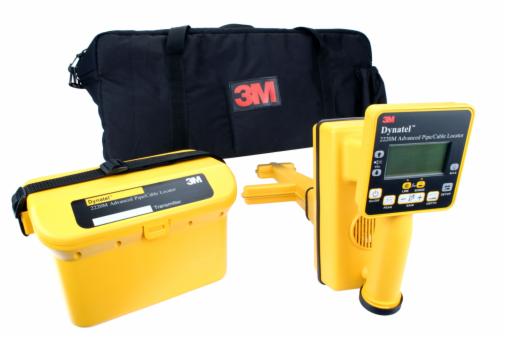

The 3M™ Dynatel™ Locator 2220M is designed to find the path and estimated depth of buried pipes and cables.
3M™ Dynatel™ Advanced Pipe/Cable Locator 2220M is designed to provide a simple and accurate solution to locate buried pipes, cables and Sondes in even the most challenging field conditions. The rugged, highly sensitive receiver uses two active trace frequencies and provides a bar graph, signal strength and direction indication to the pipe/cable. In addition, the receiver is designed to detect passive power and auxiliary frequencies that do not require the use of a transmitter. • Locates pipes, cables and tracer wire • Detects power signals • Locates Sondes and pipeline inspection cameras • Detects cathodic protection signals
Typical Properties
| Brands | Dynatel™ |
| Clip Size | Large Clips, Extra Large Clips |
| Coupler Size | No Coupler |
| EMS Caution Tape Finding Capability | No |
| Fault Finding Capability | No |
| Locator Function | Cable, Pipe |
| Marker Finding Capability | No |
| Number of Frequencies | 2 |
| Product Type | Utility Locator |
| Series Compatibility | Dynatel 2200M |
| Solution for | Longhaul/Metro Loop Network: Outdoor, Wireless Network: Backhaul, Access Network: xDSL, Access Network: FTTH/FTTB/CATV |
| Transmitter Output | 12W |
