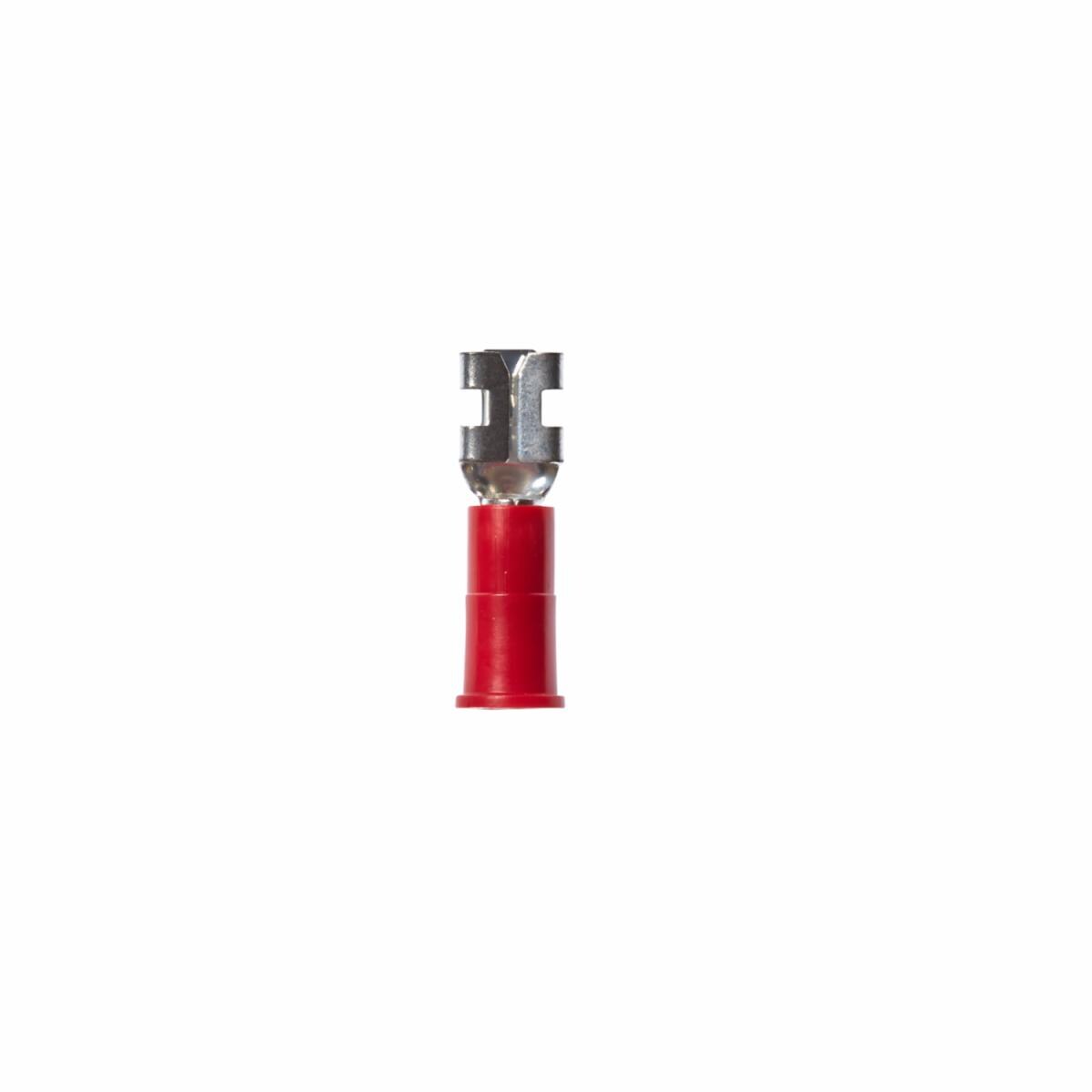

3M™ Highland™ Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG 22-18, 25/Bag
- 3M ID 7000133664
Details
Highlights
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Red terminal mates with a 0.25-in wide male tab
This female disconnect accepts a wire range 22-18 AWG, a stud size of .250 and has a case quantity of 10 bags.
Attached to male disconnect by tongue slipping over male tab. Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.
Typical Properties
| Barrel Inside Diameter | 0.08 Inch |
| Barrel Length (metric) | 6.35 mm |
| Barrel Style | Butted |
| Brands | Highland™ |
| CSA File Number | LR22190 |
| Connection Width (Metric) | 6.35 mm |
| Fastener Orientation | Female |
| Insulation Material | Vinyl |
| Material | Plastic |
| Mates with Female Width | 0.25 Inch |
| Mates with Male Tab Width (W') | 0.25 Inch |
| Max. Number of Cores | 419 |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Insulation Outside Diameter (metric) | 3.7 mm |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Voltage Rating | 600 to 1000 V |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
| Units per Case | 10.0 |
| Units per bag | 25 |
| Overall Length (Metric) | 22.098 mm |
