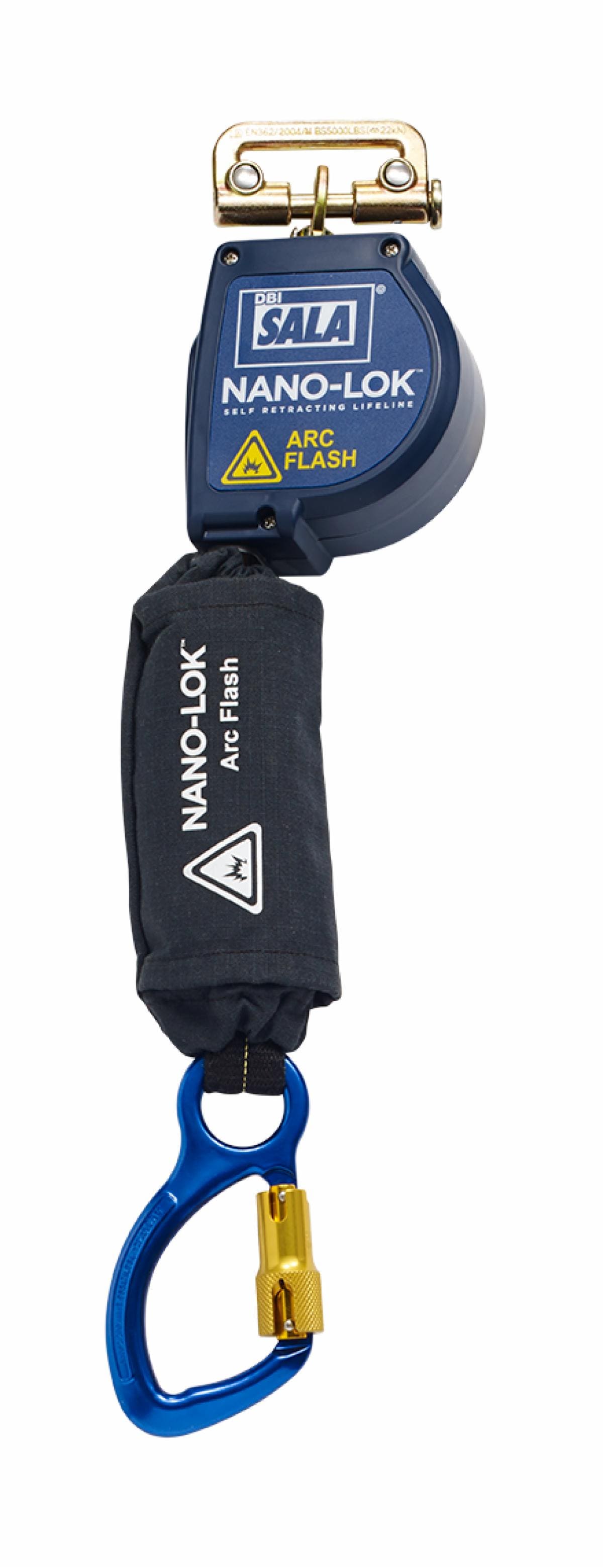

3M™ DBI-SALA® Nano-Lok™ Arc Flash Quick Connect Self Retracting Lifeline, Web 3101530, 2.4 m, 1 EA/Case

  • 3M Product Number 3101530
  • 3M ID 70007445706

Arc flash rated

Built-in connector for single-leg SRL direct attachment to harness

8 ft. (2.4m) 3/4" (19mm) Kevlar® fiber webbing lifeline

View more details

Details

Highlights
  • Arc flash rated
  • Built-in connector for single-leg SRL direct attachment to harness
  • 8 ft. (2.4m) 3/4" (19mm) Kevlar® fiber webbing lifeline
  • Self-locking snap hook on lifeline
  • Tough and impact resistant thermoplastic housing
  • Swiveling anchorage loop
  • Quick activating speed sensing brake system
  • High capacity energy absorber and impact indicator protected by Kevlar® fiber cover
  • Equipped with 3M™ Connected Safety ID (CSID)
  • Wide variety of configurations available

8 ft. (2.4m) of 3/4" (19mm) Kevlar® fiber webbing and aluminum captive eye carabiner, quick connector for harness mounting.

Nano Lok™ is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are dozens of models to choose from to suit almost any application. Nano Lok™ locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.

Typical Properties

Anchor Connection Type

Carabiner

Brands

DBI-SALA®

Connected Safety ID Equipped

Yes

Harness Connection Type

Single Pin Connector

Housing Material

Nylon Thermoplastic

Housing Type

Thermoplastic

Lifeline Hook Material

Aluminum

Lifeline Length (Metric)

2.4 Metre

Lifeline Material

Fire Resistant Web

Mounting Type

Direct to Harness Back

Product Series

Nano-Lok™

Product Type

Arc Flash Quick Connect Self-retracting Lifeline

Recommended Industry

Construction, General Industrial, Utilities, Oil & Gas

Weight Capacity (Metric)

190 kg
