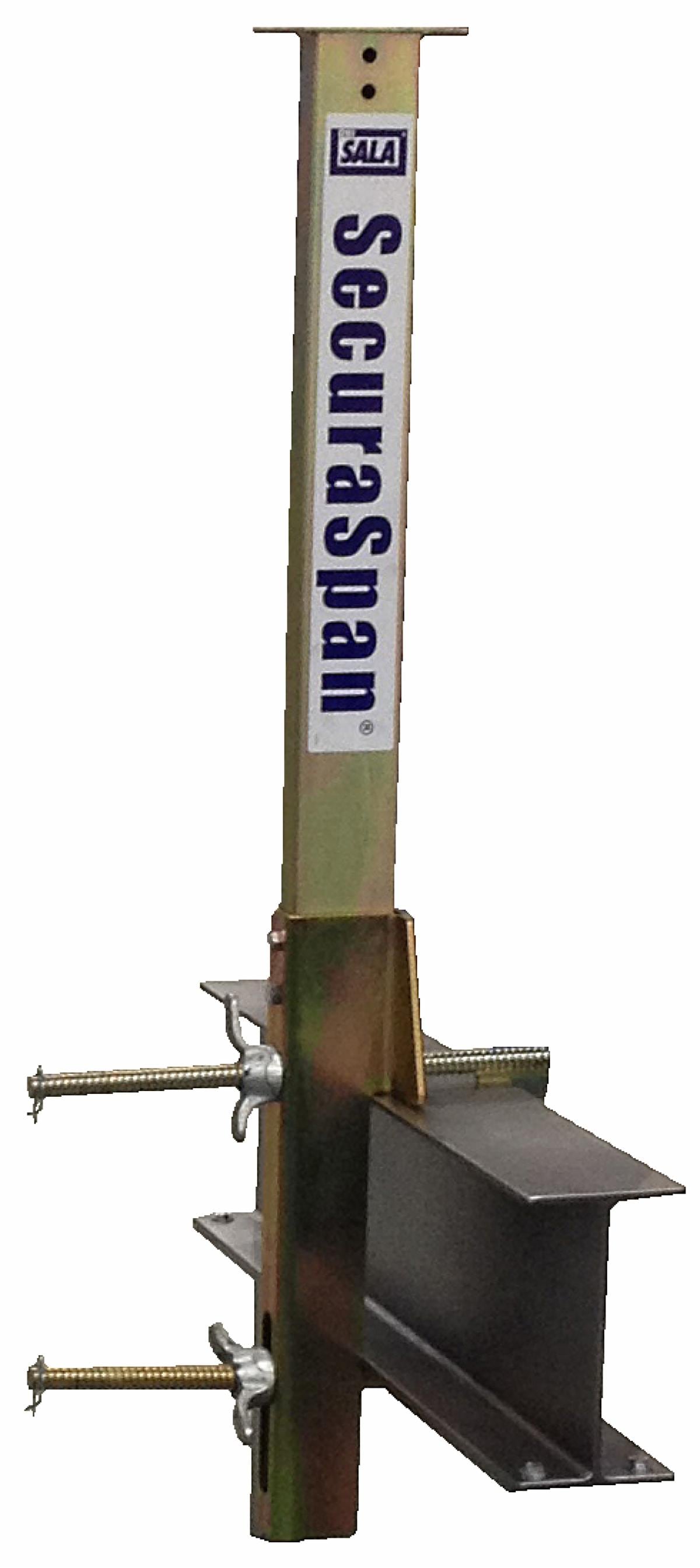

3M™ DBI-SALA® SecuraSpan™ Perpendicular I-Beam HLL Stanchion with Base 7400087, Order Separately, 1 EA/Case

  • 3M ID 70007486478

Stanchion with I-beam base to configure your own SecuraSpan™ Perpendicular system

Fits 8 in. to 14 in. (20.32-35.56 cm) high with flanges up to 2-1/4" (5.7 cm) thick

Lightweight and portable design

View more details

Details

Highlights
  • Stanchion with I-beam base to configure your own SecuraSpan™ Perpendicular system
  • Fits 8 in. to 14 in. (20.32-35.56 cm) high with flanges up to 2-1/4" (5.7 cm) thick
  • Lightweight and portable design
  • Double clamp and wing nut installation
  • Extremely durable construction
  • Single and multi-span indefinite length system configurations
  • Pass-thru 100% tie-off protection
  • Flexible system capacity
  • Various lengths and individual components are available
  • Equipped with 3M™ Connected Safety ID (CSID)

Stanchion with I-beam base for perpendicular system, fits 8 in. to 14 in. (20.32-35.56 cm) high I-beams with flanges up to 2-1/4" (5.7 cm) thick.

Extremely lightweight and portable, these systems incorporate a modular, multi-base design that accommodates a wide range of steel beams. Spans can be up to 60 ft. (18.3 m) and with the optional bypass brackets, the system can be configured to run indefinitely for ultimate jobsite flexibility. You can always depend on our horizontal safety systems for mobility and fall protection when working at height. That’s why safety engineers and site directors choose DBI-SALA® horizontal lifelines. We offer the broadest selection, as well as significant advantages in safety and productivity. A horizontal lifeline may appear to be a basic line strung between two anchors, but it is not. It is critical to choose a system that has been precision engineered and rigorously tested to meet regulations. These systems are used to protect workers operating in the horizontal plane who may not have continuous access to suitable anchorage points.

Typical Properties

Brands

DBI-SALA®

Case Quantity

1

Connected Safety ID Equipped

Yes

D-ring Placement

Double Front

For Use With

3M™ DBI-SALA® SecuraSpan™ I-Beam System

Install Type

Temporary/Portable

Lifeline Material

Order separately

Maximum Number of Workers

2 Per Span, 6 Total

Net Weight (Metric)

20 kg

Product Series

SecuraSpan™

Product Type

Perpendicular I-Beam HLL Stanchion with Base

Recommended Industry

Oil & Gas, Construction

Span Type

Single or Multi-Span

Weight (metric)

20 kg

Weight Capacity (Metric)

141 kg
